ECOM Cube 800

ECOM Cube 800

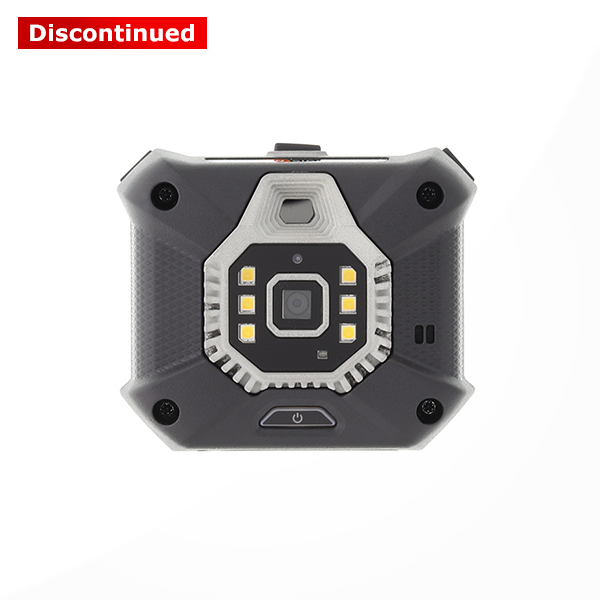

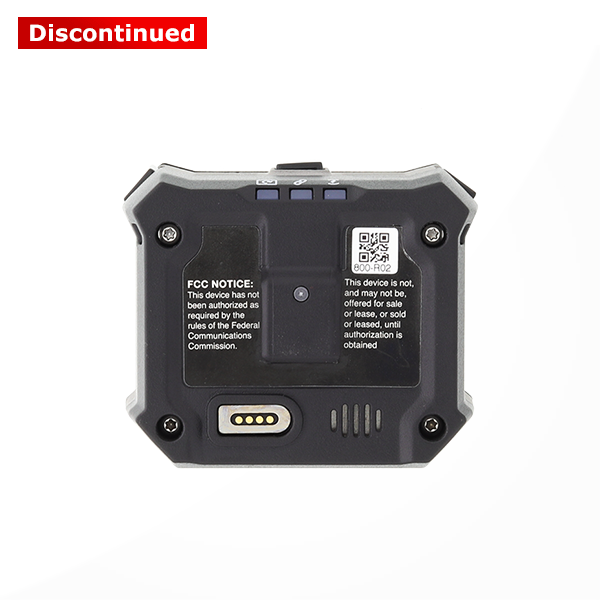

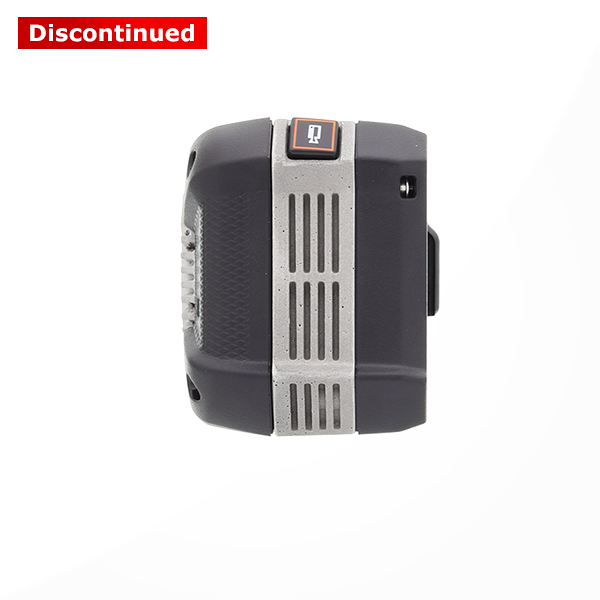

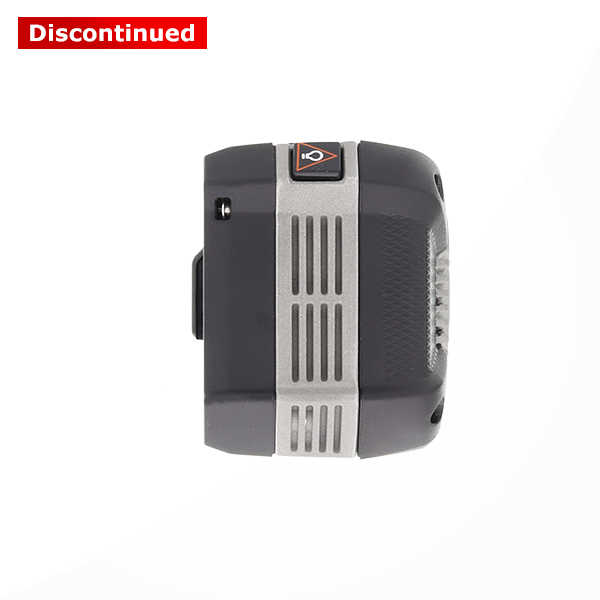

Intrinsically Safe Wearable Camera: The new Cube 800

Designed for safe operation in Ex-certified and rugged environments, the CUBE 800 brings hands-free collaboration to the world’s toughest locations.



Enquiry
SKU: 1001-5 Category: Tag:
Description

Multi-purpose design



With dual camera inside, users can choose optical and thermal camera modes. The integrated thermal imaging camera provides infrastructure health analysis and trending information while the optical camera provides HD video and images. The integrated light ring and laser aiming pointer ensures high quality visuals.



The magnetic auto-latch mount provides an easy and secure way to attach the CUBE 800 to hardhat and headband accessories. Its multi-purpose design allows for hands-free, handheld, and monopod use to capture visuals in hard to reach places.



  • Efficient cooperation with mobile devices such as the Smart-Ex® 02
  • Dual camera system with HD optics and thermal imaging technology
  • Remote collaboration with experts via Onsight Connect possible
  • Integrated laser pointer and light ring
  • Multi Use Design: Mount to a helmet or headband for hands-free, attach a monopod, or use handheld forhard to reach areas
  • Record video and store pictures with continuous capture for instant replay



Optical performance 13 MP camera (3 x digital zoom)
10 cm to infinity focus range
Automatic focus and white balance
Integrated LED illumination
Class 1 Laser aiming pointer
Thermal imaging camera Longwave infrared, 8-14 μm
< 50 mK thermal sensitivity
Auto Flat Field Correction (FFC)
Typical Measurement Accuracy*:
Greater of +/- 5 C or 5% where scene temperature = -10 °C to +120 °C
Range Greater of +/- 10 C or 10% where scene temperature = +120 °C to +450 °C Range
Audio Built-in omni-directional microphone for ambient sound
Built-in speaker for Cube status alerts
Video standard H.264 / AVC
HD capture and stream up to 1080 Pixel resolution
Communication Configuration and live collaboration using Onsight Connect software iOS 11
Android™ 5.0 (Lollipop) or higher
Integrated IEEE 802.11 a/b/g/n
Dual Band WiFi (2.4GHz and 5GHz)
Bluetooth 4.1 (LE) for pairing to host device
Media capture & storage 48 GB onboard storage
USB cable for file transfer
Security WLAN network authentication: WPA, WPA2, WPA-PSK, WPA2-PSK, open
WLAN Data Encryption: AES, WEP, TKIP, or Disabled
802.1 x Authentication: PEAP
AES-256 Media Encryption for file storage
Rugged features 6 foot drop to concrete at 20°C
75 mm (W) x 64 mm (H) x 50 mm (D)
IP64
Operating ambient Temperature Optical camera: -20 °C to +55 °C
Thermal Imaging: -10 °C to +55 °C
Storage temperature -30 °C to +60 °C
Humidity (non-condensing) Short term storage (up to 3 months) minimum 5 %, maximum 85 %
Operating minimum 5 %, maximum 95 % RH
Altitude Storage (12°C) minimum 0 ft, maximum 15,000 ft
Operating (27°C) minimum 0 ft, maximum 10,000 ft
Power Rechargeable 2200 mAh Li-Ion battery
5V DC, 1.8 A AC Adapter
Charging from any standard USB port
Magnetic charging connector
Up to over 4 hours of runtime, depending on media and illumination settings

Ambient temperature-15 °C … +50 °CConnectifityWi-Fi 802.11 b/g/n 2.4 GHz
Bluetooth® A2DP, AVRCP
GPS, GlonassPowerLi-Ion battery 3.85 V / 472 mAh / 1.81 Wh, battery life up to five days
